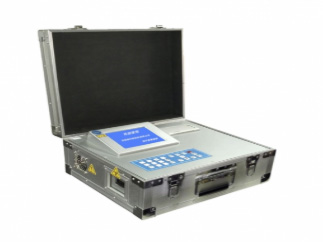

GRT-6008 automatic blood analyzer

AddTime：2022-01-06

main feature:

1. Operating mode: Fully automatic detection, one-button operation;

2. Operation mode: membrane keys, flexible and easy to control the host;

3. Operation interface: easy to learn;

4. Sample type: peripheral whole blood;

5. Display mode: 10.4-inch large color LCD screen;

6. Testing consumables: reagents do not contain cyanide, green and environmentally friendly without pollution;

7. Calibration method: automatic calibration or manual calibration;

8. Environmental requirements: strong adaptability, no special constant temperature measures are required, adapt to cold plateau and tropical climate;

9. Report printing: built-in printer, a variety of exquisite Chinese and English reporting methods, specimen information, test results, reference values, etc. at a glance;

10. System design: closed circuit control module design, lower power consumption, more stable quality and higher efficiency;

11. Expert diagnosis system: abnormal blood sample prompt;

Consult

HotLine：400-6018-657

GRT-6008 automatic blood analyzer

Feature：

main feature:

1. Operating mode: Fully automatic detection, one-button operation;

2. Operation mode: membrane keys, flexible and easy to control the host;

3. Operation interface: easy to learn;

4. Sample type: peripheral whole blood;

5. Display mode: 10.4-inch large color LCD screen;

6. Testing consumables: reagents do not contain cyanide, green and environmentally friendly without pollution;

7. Calibration method: automatic calibration or manual calibration;

8. Environmental requirements: strong adaptability, no special constant temperature measures are required, adapt to cold plateau and tropical climate;

9. Report printing: built-in printer, a variety of exquisite Chinese and English reporting methods, specimen information, test results, reference values, etc. at a glance;

10. System design: closed circuit control module design, lower power consumption, more stable quality and higher efficiency;

11. Expert diagnosis system: abnormal blood sample prompt;

Performance:

Main performance:

1. Working principle: fluorescence method;

2. Clinical function: three categories, 18 items or 21 items, three histograms;

3. Sample dosage: 20-40 microliters of peripheral blood or whole blood;

4. Detection speed:> 100 samples / hour;

5. Result storage:> 1000 copies;

6. Cross-contamination rate: one-time blood collection tube is adopted, no cross-contamination, and no hole blocking phenomenon;

6. Report printing: built-in 57mm thermal printer;

7. Dimensions: 35 × 40 × 46 (CM);

9. Software function: automatic calibration, automatic error correction, software version: V7.1;

10. Input and output port: 1 RS232 interface (can be networked).

Measurement items:

White blood cell (WBC), lymphocyte (LY), neutrophil (NE), monocyte (MO), lymphocyte ratio (LY%), neutrophil ratio (NE%), monocyte ratio (MO %), Red blood cells (RBC), hemoglobin (HGB), average hemoglobin concentration (MCHC), average red blood cell volume (MCV), average hemoglobin volume (MCH), red blood cell distribution width (RDW), hematocrit (HCT), platelets ( PLT), mean platelet volume (MPV), platelet distribution width (PDW), platelet specific volume (PCT).

Main performance parameters:

Parameter Unit Accuracy (CV%)

WBC 109 / L ≤2.0%

PLT 109 / L ≤5.0%

MCV fl ≤1.0%

HGB g / L ≤1.5%
